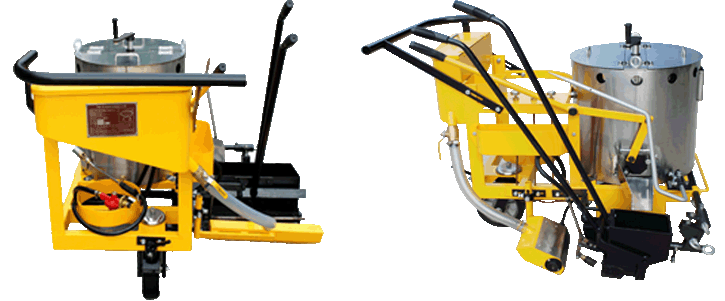

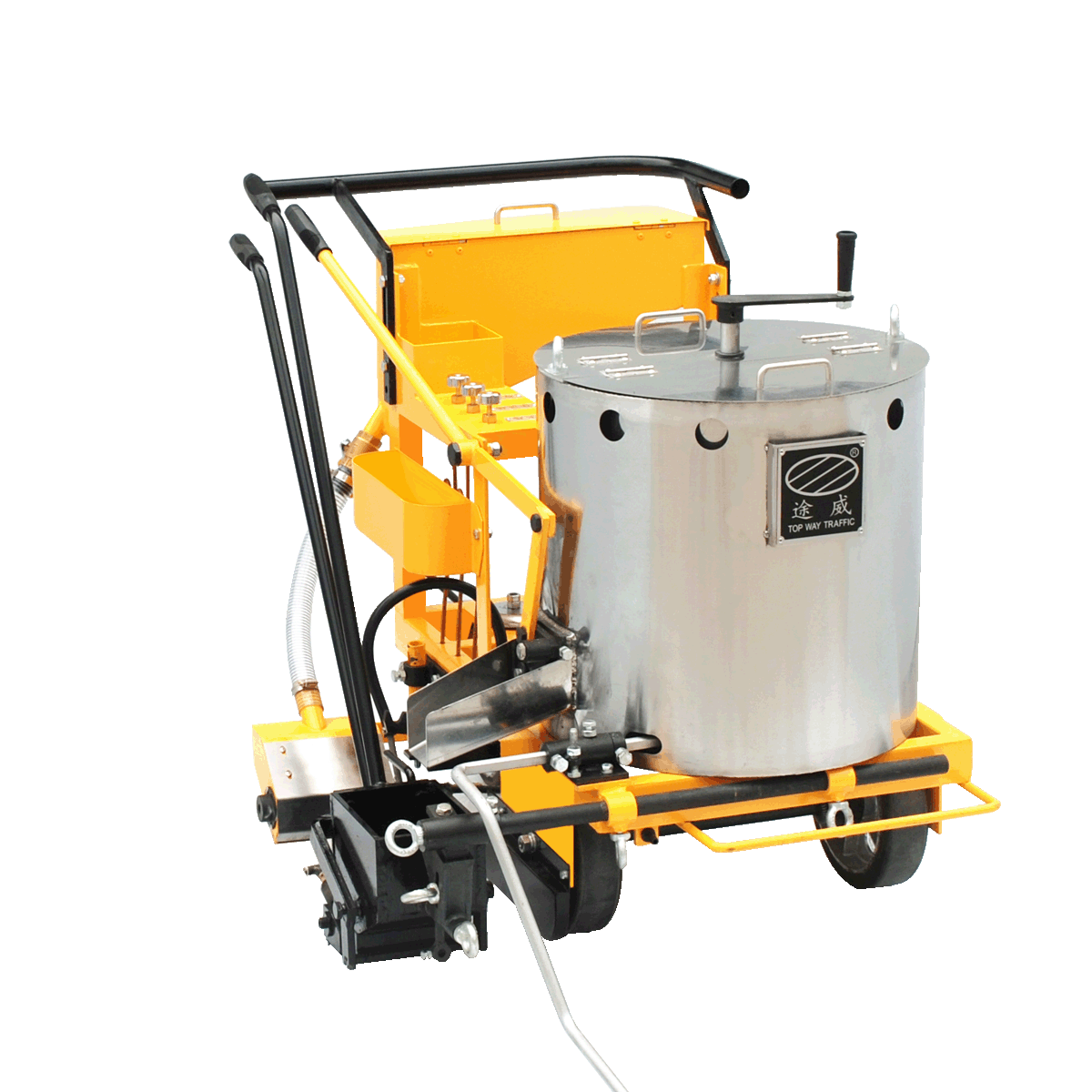

TW-H Hand Push Marking Machine
Hand Push Marking Machine is one of the key machines for thermo-melting coating marking. The marking quality depends on the stability of machine frame and the operating range of marking hopper, which reflect the difference in performance of different marking machine.
TOP WAY TW-H Hand Push Marking Machine in its new design, its wheel space wider, center of gravity changed, shaft form renewed, so the machine body is lighter and more flexible, reduce labor intensity, such problems as uneven finishing mark edge and over operation are solved, and reduce unstableness when marking zebra crossing.
Techinical parameters
Outer diamensions(L*W*H) 1200*900*900mm
Net weight 125KG
Capacity of glass beads case 25kg
Coat thickness 1.2-4mm
Glass beads spreading method Flexible shaft driven, automaticallly clutch
Temeprature maintenance of coating material 170-250℃
Capacity of stirring tank 105KG
LPG tank norm 15KG
Marking width 50,80,100,120,150,200,230,250,300,400,450,500mm
Specification
*More stable
Through gravity adjustment, widened the distance between front wheels, the Marking Machine is more stable than traditional ones when marking 450mm zebra crossing.
*Bold Pointer
Bold Pointer with less shakiness, has a strong ability to avoid bending during line marking process.
*Lighter
Through repeatedly gravity test, choosing new shaft, the marking machine is much lighter, thus reduce operator’s working intensity. So the marking works become easier and more effectively.
*Easy to operate
Marking hopper's operating range minimized from 300mm to 200mm, more accurate and easier to control, therefore such problems as slow hopper withdrawal and uneven finishing mark edge are solved. A multi-point slider compact structure is used to avoid material leakage which often occurs to similar products due to the two tightly pressed sides and large deformation in the middle part.

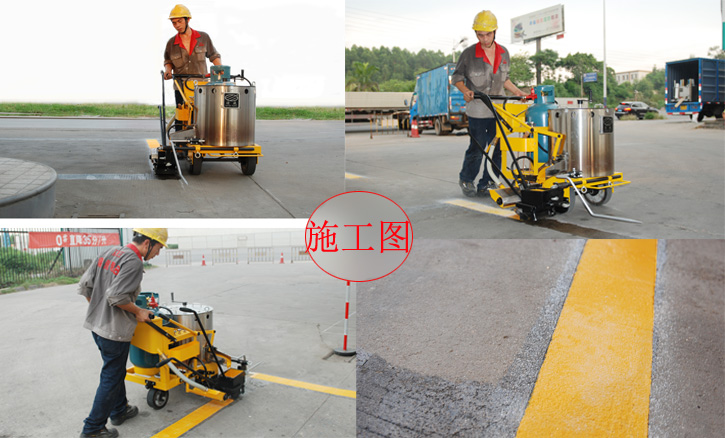

Working picture
